Baosteel CRGO Cold Rolled Grain Oriented Silicon Steel B20r070 Laser Scribed

MOQ: 1
Price: consult
Standard Packaging: Standard export package for ocean transportation
Delivery Period: 5 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 200Ton/week
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JC
Certification
SGS，CE,UL
Model Number
B20R070
Document
Product Brochure PDF
Coating:
Electro Galvanized, Hot Dip Galvanized
Coating Color:
RAL Color
Impact Test:
No Crack
Length:
1000mm-2000mm
Thickness:
0.23mm-0.35mm
Grade:
M1, M2, M3, M4
Package:
Standard Export Packing
Width:
1000mm-1250mm
Type::
Oriented Silicon Steel
Standard::
GB, AISI, ASTM, DIN, JIS
Technique::
Cold Rolled
Shape::
Coil
Transport Package::
Standard Export Package For Ocean Transportation
Trademark::
Baosteel; WISCO; Nippon Steel; JE; AK
Color:
Silvery
Core:
CRGO
Insulation:
CRNGO
Packaging:
Wooden Pallet
Tolerance:
±0.02mm
Minimum Order Quantity:
1
Price:
consult
Packaging Details:
Standard export package for ocean transportation
Delivery Time:
5 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
200Ton/week
Highlight:

cold rolled grain oriented silicon steel

,

cold rolled silicon steel

,

grain oriented silicon steel

Product Description

Baosteel CRGO B20r070 Laser Scribed Silicon Steel

Basic Info.

Model NO.
B20R070
Trademark
Baosteel
Origin
China
HS Code
72251100
Production Capacity
5000mt/Month

Product Description

There are over 300 independent intellectual property rights, mainly composed of stainless steel, and proprietary technologies! Or participate in the production of steel strip products that have completed 70 years. The first form of the project has formed an efficient and efficient production and cluster of long and long lifespan low-end iron products, mainly consisting of one piece, cold rolled, and silicon steel dielectrics

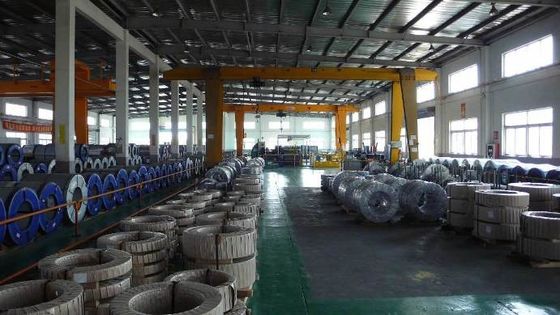

PRODUCT SHOW
Baosteel CRGO Cold Rolled Grain Oriented Silicon Steel B20r070 Laser Scribed 0Baosteel CRGO Cold Rolled Grain Oriented Silicon Steel B20r070 Laser Scribed 1Baosteel CRGO Cold Rolled Grain Oriented Silicon Steel B20r070 Laser Scribed 2
PRODUCT DETAILS
Major Manufacturer BAOSTEEL, WISCO, Nippon Steel, JFE, AK
Grade CRGO:
20ZDKH75, B20P075, B20P070, B18R070
B23G110, B23G100, B23P100, B23R095, B23R090, 23ZH90, 23QG090, B23R080
27Q120, 27QG100, 27QG095, B27P120, B27P100, B27P095
30Q130, 30Q120, 30QG105; B30G130, B30G120, B30P120, B30P105
35Q155, B35G155, 35Z155
CRNGO:
B35A270, B35A250, B35A230, B35A300, 35WW270, 35WW250, 35WW230
B50A800, B50A600, B50A470, B50A400, B50A310, B50A290, B50A250, B50A1300, B50A1000
Nominal thickness 0.18mm, 0.20mm, 0.23mm, 0.27mm, 0.30mm, 0.35mm, 0.5mm
Coil ID 508mm
Weight 2MT~8MT
Standard EN 10106, IEC 60404-8-4, ASTM, DIN, GB, JIS
Form Cold Rolled Strip
Delivery Lead Time 7~15 days after T/T prepayment or L/C date
Packing Standard export package for ocean transportation
Application All kinds of transformer, reactor, filter, inverter

Specification of CRGO silicon steel products
Type Grade Thickness (mm) Available width range(mm) ID Density (kg/dm³) P17/50Max. Core Loss(W/kg) B8Min. Induction(T)
Common Type B23G110 0.23 700-1200 508 7.65 1.10 1.80
B27G120 0.27 1.20 1.80
B30G120 0.30 1.20 1.80
B30G130 1.30 1.80
B30G140 1.40 1.80
B35G135 0.35 1.35 1.80
B35G145 1.45 1.80
B35G155 1.55 1.80
High Induction Type B23P090 0.23 0.90 1.87
B23P095 0.95 1.87
B23P100 1.00 1.87
B27P095 0.27 0.95 1.88
B27P100 1.00 1.88
B27P110 1.10 1.88
B30P100 0.30 1.00 1.88
B30P105 1.05 1.88
B30P110 1.10 1.88
B30P120 1.20 1.88
B35P135 0.35 1.35 1.88
B35P155 1.55 1.88
Domain Refined High Induction Type B23R080 0.23 0.80 1.87
B23R085 0.85 1.87
B23R090 0.90 1.87
B27R090 0.27 0.90 1.87
B27R095 0.95 1.87
NOTE:
Detecting Basis GB/T3655-2000
P17/50 means core loss of sample per kg at max. Magnetic induction 1.7T and frequency 50Hz
B8 means magnetic induction corresponding to 800A/m magnetic field intensity

PACKING


Baosteel CRGO B20r070 Laser Scribed Silicon Steel


Company advantage

Quality is guaranteed. First, the raw materials come from many well-known domestic and foreign enterprises, such as Baosteel, WISCO, Nippon Steel. We have the most excellent materials. Secondly, our company has a perfect quality assurance system, which guarantees that you can get the best products from purchase to delivery.
Price concessions. Our company's product price is in the middle level of the industry, and is famous for its high cost performance. There is still a lot of room for price. We look forward to your demand. We will give you a most suitable quotation.
Delivery on time and stable cooperation. Jiachen has had five years of trade experience since its establishment in 2014. Good service is a constant requirement and has always done so. You can rest assured of our promptness of delivery and the flexibility of expanding supply.
Service is trustworthy. We have been a high-quality supplier of made-in-China network, has been committed to foreign trade, foreign trade capacity has been audited by made-in-China network. S. We sincerely and warmly welcome you to visit and give advice to improve our shortcomings, learn new technologies, improve product performance, and mutual benefit.
