| MOQ: | 1 pcs |
| Price: | consult |
| Standard Packaging: | Export standard packaging |
| Delivery Period: | 3 days |
| Payment Method: | L/C, T/T, Western Union, MoneyGram |
| Supply Capacity: | 100pcs/month |

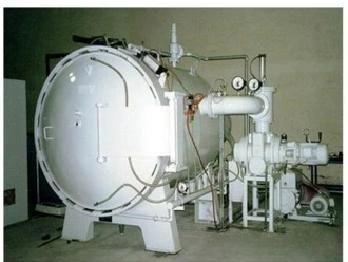

Vacuum Annealing Steel Furnace for Improved Hardness & Ductility for transformers
The vacuum annealing building is mainly used for bright annealing, solid solution aging, and return processing of magnetic materials for high-speed steel, high alloy tool and mold steel, electrical magnetic materials, non-ferrous metals, stainless steel, and other products.
The TYTL series vertical vacuum annealing furnace is mainly used for bright annealing, solid solution aging, vacuum brazing, and sintering of magnetic materials for high-speed steel, high alloy tool and mold steel, electrical magnetic materials, non-ferrous metals, stainless steel, and other products.
The LZT series vertical vacuum annealing furnace is more suitable for slender or elongated workpieces
Technical characteristics
The TYT series horizontal vacuum annealing furnace has two types of furnace liners: graphite furnace liner and metal furnace liner. The heating element of the graphite furnace liner is graphite rod, and the insulation screen is made of multi-layer carbon felt and ceramic felt; The heating body of the metal furnace liner is made of metal molybdenum, and the insulation screen is made of metal molybdenum and stainless steel, mainly suitable for special materials such as titanium alloy and soft magnetic alloy. The electrical system has a high degree of automation, stability and reliability, and can operate independently except for loading and discharging. Among them, intelligent temperature controllers are used for temperature control, and programmable controllers (Omron, Siemens or Taida) are used for action control.
The TYTL series vertical vacuum annealing furnace has two types of furnace liners: graphite furnace liner and metal furnace liner: the heating element of the graphite furnace liner is graphite rod, and the insulation screen is multi-layer carbon felt and ceramic felt; The heating element of the metal furnace liner is made of metal molybdenum, and the insulation screen is made of metal molybdenum and stainless steel, mainly used for special purposes such as titanium alloys and soft magnetic alloys
| NO. | Model | Service area mm | Amount of charge KG | The highest temperatur | Tmperature uniformi | Limited vacuum Pa | Rate of pressure rise(pa/L) | Working pressure(Mpa |
| 1 | KL-2000 | 1300X1000X1200 | 2000 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
| 2 | KL-2500 | 1300X1200X1200 | 2500 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
| 3 | KL-3000 | 2600X1000X1200 | 5000 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
| 4 | KL-3500 | 1300X1200X120C | 5500 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
Above sizes are reference only and can be customized according to user requirements for various models of vacuum furnace.
Overview
KM Series of coal, oil and gas phase drying equipment is the use of kerosene heating evaporation under vacuum condition, become hot keros- ene evaporates, met lower-temperature condensation of the workpiece in the vacuum tank, releasing latent heat of condensation (306.6KJ/KG)
And heating of the body. Condensation paraffin is collected through fuel delivery system back into the evaporator, heat evaporation again, and so many times, operating temperatures continue to rise, water constantly ev- aporates into water vapor, is drained by vacuum system, and ultimately achieve the goal of completely dry.
KM Series of coal, oil and gas-phase drying equipment to fuel the
steam for heat transfer fluids, convective heat and condensation heat tra- nsfer in vacuum and low temperature condensed the more intense the
heat more, therefore the body temperature uniformity.
Main technical characteristics
1,KL Vacuum heat treatment furnace series is widely used in electric power, mold manufacturing, auto industry, machinery, electronics and high-tech materials industry.
2,Type of heat treatment equipment: vacuum high-pressure gas que-
nching furnace (6-20bar),Vacuum, vacuum sintering furnace, vacuum oil quenching furnace annealing(tempering)furnace, vacuum core special furnace and so on. Also according to the customer request non-standard vacuum furnace.
3,Equipment composition: heating systems, vacuum systems, vacuum furnace, cooling system, cooling system, pneumatic system, pneumatic system, electric control system (optional touch screen).
4 ,KL Main series vacuum furnaces for the double-layer water cooling
structure, shell made of carbon steel or stainless steel, graphite and
metal of boiler furnace of boiler two: Metal furnace heating element moly- bdenum / Tungsten / Nickel material, heat shield with metal molybdenum / Tungsten / Nickel / The stainless steel material. Temperature control using
Japan Island electric temperature control instrument, the other is controlled by Japan's Mitsubishi series PLC main electrical appliances imported.
My Company:
is a high-tech private enterprise, it has a experienced term, which more than ten years engaged in research and development, design, manufacture and installation of vacuum equipment. Besides, it is not only committed to build high quality brand about vacuum equipment, but it also has prodcuts, which are widely used in impregnating, epoxy resin pouring, drying, and note oil processing in some industries(like metal heat treatment, transformer, and transformer device, reactor device, reg- ulator device, high pressure electrical, motor, capacitor, switch and other similar industries).
Relying on strong technical advantages and scale advantages, and it also dedicated itslef to develop Vacuum application technology and relative vacuum equipment Main products are differnent kinds of vacuum casting equipments, vacuum drying equipment, vacuum impregnation equipment, vacuum oiling device equipment, and vacuum heat treatment equipment.
The most important of this company is product qualitu, and it strictly follows international quality certification system, implmentcation od quality poliy about'creating a Kerry brands, buliding first-class equipment, following innovation for development, and being in accordance with customer service.It also provides the best solution, higher quality products and more valuable and efficient after-sales service for
new and old customers.
| NO. | Model | Service area mm | Amount of charge KG | The highest temperatur | Tmperature uniformi | Limited vacuum Pa | Rate of pressure rise(pa/L) | Working pressure(Mpa |
| 1 | KL-2000 | 1300X1000X1200 | 2000 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
| 2 | KL-2500 | 1300X1200X1200 | 2500 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
| 3 | KL-3000 | 2600X1000X1200 | 5000 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
| 4 | KL-3500 | 1300X1200X120C | 5500 | 2000 | ±5 | 0.4/0.0067 | 0.67 | Vacuum |
