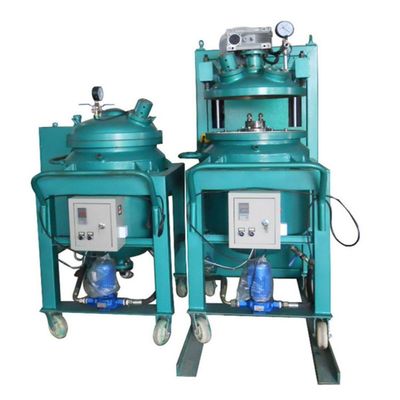

Injection Trolley and Mixing with APG Machine for Transformer CT PT
  • name
  • name
  • name
  • name
  • name

Injection Trolley and Mixing with APG Machine for Transformer CT PT

MOQ: 1 pcs
Price: consult
Standard Packaging: Wooden
Delivery Period: 5 days
Payment Method: T/T, Western Union, MoneyGram, D/P
Supply Capacity: 100pcs/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JC
Certification
SGS，CE,UL
Model Number
888
Document
Product Brochure PDF
Insulating Medium:
Epoxy Resin
Magnetic Circuit Structure:
Combined Type
Clamp Plate Size:
1000X1000mm
Min Max Clamp Plate Strok:
250X1650mm
Heating Power:
36kw
Specification:
900*900*900
Origin:
China
Production Capacity:
60000PCS/Year
Minimum Order Quantity:
1 pcs
Price:
consult
Packaging Details:
Wooden
Delivery Time:
5 days
Payment Terms:
T/T, Western Union, MoneyGram, D/P
Supply Ability:
100pcs/month
Highlight:

Transformer CT PT APG Machine

,

Injection Mixing APG Machine

Product Description

Basic Info.

Model NO.
AH100
Insulating Medium
Epoxy Resin
Installation
Active Type
Magnetic Circuit Structure
Combined Type
Voltage Transformation Principle
Photoelectric Type
Clamp Plate Size
1000X1000mm
Clamp Force
22t
Min Max Clamp Plate Strok
250X1650mm
250X1650mm
900X400mm
Heating Power
36kw
Transport Package
Wooden
Specification
900*900*900
Trademark
JC
Origin
China
HS Code
8514300090
Production Capacity
60000PCS/Year

Product Description

Injection trolley and mixing with APG machineInjection Trolley and Mixing with APG Machine for Transformer CT PT 0
Injection Trolley and Mixing with APG Machine for Transformer CT PT 1


Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
Injection Trolley and Mixing with APG Machine for Transformer CT PT 2Injection Trolley and Mixing with APG Machine for Transformer CT PT 3
