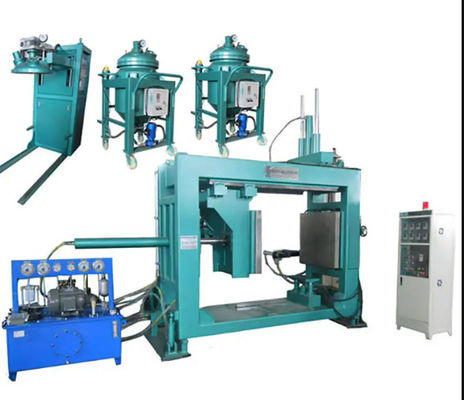

2 Work Station Support 2 Moulds Vacuum Mixing Injection Device

2 Work Station Support 2 Moulds Vacuum Mixing Injection Device

Detail Information
Place of Origin
China
Brand Name
JC
Certification
SGS,CE,UL
Model Number
YU9088
Min Max Clamp Plate Strok:
250X1650mm
Upper &lower Core Puller Stroke:
900X400mm
Machine Dimension:
5100xl400x3700mm
Machine Weight:
7500KG
Application:
Mixing And Injection
Control System:
Computerized
Dimensions:
Customized
Injection Accuracy:
High
Injection Speed:
High
Injection Volume:
High
Mixing Accuracy:
High
Mixing Speed:
High
Mixing Type:
Vacuum Mixing
Noise Level:
Low
Power Supply:
AC
Product Name:
Thin Film-degassing Vacuum Mixing And Injection Device
Safety Protection:
Yes
Vacuum Degree:
High
Highlight:

2 Moulds Vacuum Mixing Injection Device

,

2 Station Vacuum Mixing Injection Device

,

Vacuum Mixing Injection

Product Description

The Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The Efficiency

Product Description

Stabdard APG Clamping Machine HAPG-860/880/1000/1200

Machine Technical Parameters
Model no HAPG-860-2
clamp plate size 600X800mm
clamp force 22T
Min Max clamp plate strok 250X1550mm
Upper &lower core puller stroke 800X400mm
Heating power 32KW
ydraulic power pack 7.5KW
Horizontal tilting angle 0-5
mould load weight 2T
Machine weight 8800KG
Machine dimension 7500x1450X3600mm

Model No. HAPG-880 HAPG-810 HAPG-1000 HAPG-1200
Clamp plate sise 800x800mm 1 000x800mm 1 000x 1 000mm 1200x 1 000mm
Clamp force 220KN 250KN 250KN 250KN
Min Max clamp plate stroke 240x 1 500mm 240x 1 550mm 250x 1600mm 250x 1600mm
Upper&lower core puller stroke 800x400mm 800x400mm 900x450mm 1 000x450mm
Heating power 32KW 32KW 36KW 36KW
Hydraulic power pack 7.5KW 7.5KW 7.5KW 7.5KW
ilt angle: vertically and Horizontally 0-7 0-7 0-7 0-7

Mould load weight
3T 4T 4T 5T
Machine weight 7500KG 7800KG 8500KG 9200KG
Machine dimension 5100xl400x3700mm 5100x1400x3700mm 5100x1400x3700mm 5100Kl400x3700mm


Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
The Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The EfficiencyThe Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The EfficiencyThe Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The EfficiencyThe Machine Is Designed with 2 Work Station Support 2 Moulds Work on Same Machine, Greatly Im Proved The Efficiency
