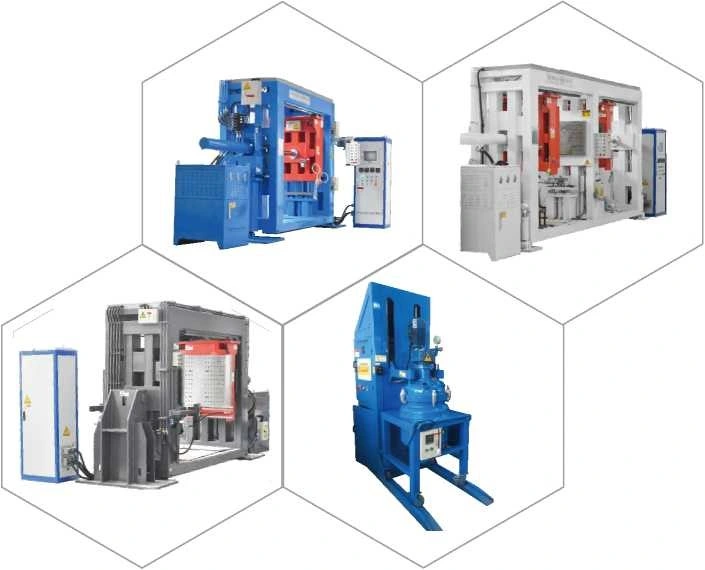

Professional on Designing and Manufacturing APG Clamping Machines
· Application-Standard APG clamping machine:
This series belongs to Standared APG clamping machine, the min clamp plate size is 600X800mm, and the Max clamp plate size is: 1200X1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SFG gas-insulated indoor switch disconnector. Etc.
The upper and lower core distance can be customized, foundation pit is necessary if lower core travel distance above 500mm.
Machine Technical Parameters
| Model No. | HAPG-880 | HAPG-810 | HAPG-1000 | HAPG-1200 |
| Clamp plate sise | 800x800mm | 1 000x800mm | 1 000x 1 000mm | 1200x 1 000mm |
| Clamp force | 220KN | 250KN | 250KN | 250KN |
| Min Max clamp plate stroke | 240x 1 500mm | 240x 1 550mm | 250x 1600mm | 250x 1600mm |
| Upper&lower core puller stroke | 800x400mm | 800x400mm | 900x450mm | 1 000x450mm |
| Heating power | 32KW | 32KW | 36KW | 36KW |
| Hydraulic power pack | 7.5KW | 7.5KW | 7.5KW | 7.5KW |
| ilt angle: vertically and Horizontally | 0-7 | 0-7 | 0-7 | 0-7 |
Mould load weight |
3T | 4T | 4T | 5T |
| Machine weight | 7500KG | 7800KG | 8500KG | 9200KG |
| Machine dimension | 5100xl400x3700mm | 5100x1400x3700mm | 5100x1400x3700mm | 5100Kl400x3700mm |
Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
APG Machine = Automatic pressure gel equipment
APG machine with Epoxy Resin for Electric Insulation of 38KV Outdoor Transformer CT and PT.
Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.
Servo HAPG Clamping Machine
This machine is full automatic, Servo and Pic touch screen control Machine, the clamp plate size n customized, greatly improved efficiency and product quality Advantages
Auto start machine heating clamp plate Auto setting hydraulic pressure Auto setting heating temperature Auto setting valve flow
APG FACTORY
Products made by APG Machine:
