Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer

Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer

MOQ: 1 pcs
Price: consult
Standard Packaging: Export standard packaging
Delivery Period: 5 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100pcs/month
Detail Information
Place of Origin
China
Brand Name
JC
Certification
SGS,CE,UL
Model Number
KCY-9000
Name:
Vacuum Pressure Casting Equipment
Process:
Casting
Specification:
Pressure Increasing
Capacity:
100-1000kg/h
Design Pressure:
Customized
Design Temperature:
Customized
Heating Method:
Direct/Indirect
Heating Source:
Steam/Electricity/Gas
Insulation:
Rock Wool/Glass Wool
Material:
Stainless Steel
Operating Pressure:
Customized
Product Name:
Pressure Increasing Drying Plant
Surface Treatment:
Painting/Sand Blasting
Vessel Type:
Vertical/Horizontal
Vessel Volume:
Customized
Dimension:
1000*1000*2000mm
Heating Temperature:
50-200℃
Humidity:
≤85%RH
Noise Level:
≤75dB
Operating Temperature:
0-50℃
Power:
220V/50Hz
Pressure Range:
0.1-0.6MPa
Weight:
500-1000kg
Minimum Order Quantity:
1 pcs
Price:
consult
Packaging Details:
Export standard packaging
Delivery Time:
5 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100pcs/month
Highlight:

Candle Tin Vacuum Resin Casting Machine

,

Resin Casting Machine Drying

,

Drying Oven For Power Transformer

Product Description

Vacuum drying oven for power transformer with Pressure Increasing Drying plant(Candle Tin)

Product Apperance:

A vacuum drying oven with a Pressure Increasing Drying (PID) plant, using a candle tin, is a specialized equipment setup commonly used for drying power transformers. This method is known as the vacuum and pressure drying process. Here's how it typically works:

Vacuum Drying: The power transformer is placed inside a vacuum drying oven. The oven creates a low-pressure environment by removing air and moisture from the chamber. This process helps in removing moisture from the transformer's insulation and windings.

Pressure Increasing Drying (PID) Plant: The PID plant is an integral part of the setup. It consists of a pressure vessel, often referred to as a candle tin, which is connected to the vacuum drying oven. The candle tin is designed to withstand high pressures.

Pressure Increase: Once the vacuum drying phase is complete, the pressure inside the oven is slowly increased by introducing an inert gas (such as nitrogen) into the candle tin. By increasing the pressure, any remaining moisture trapped within the transformer's insulation is forced out.

Heat Application: During both the vacuum and pressure increase phases, heat is applied to the oven. The temperature is carefully controlled and gradually increased to facilitate the drying process. The temperature range and duration depend on the specific requirements of the transformer being dried.

Moisture Removal: As the pressure increases and the temperature rises, the moisture within the transformer evaporates and is carried away by the inert gas. The moisture-laden gas is then expelled from the oven.

Cooling and Venting: Once the desired drying level is achieved, the oven is cooled down, and the pressure is gradually reduced. This ensures that the transformer and its insulation regain ambient conditions without causing thermal stress.

The vacuum drying oven with a Pressure Increasing Drying plant (Candle Tin) is an effective method for drying power transformers. It helps eliminate moisture, enhance the insulation properties, and ensure optimal performance and longevity of the transformer. It is often used during the manufacturing process or when maintenance work is carried out on transformers.

Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 0Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 1Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 2Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 3

  1. EQUIPMENT COMPOSITION
NO. NAME QUANTITY REMARK
1.1

200L VACUUM FINAL MIXING GAS TANK

SYSTEM

TWO SETS
1.2 VACUUM POURING TANK SYSTEM ONE SET
1.3 HEATING SYSTEM TWO SETS
1.4 VACUUM SYSTEM TWO SETS
1.5 COOLING WATER PIPING SYSTEM ONE SET
1.6 PNEUMATIC AND PIPING SYSTEMS ONE SET
1.7 CONTROL SYSTEM ONE SET TOUCH SCREEN
1.8 STEEL FRAME PLATFORM ONE SET OFFERED BY PART A
  1. TECHNICAL INDICATORS AND PARAMETERS OF EQUIPMENT:
    1. Vacuum pouring pot size Φ2000×L2400
    2. The pumping speed of the main pumping pump of the vacuum system is 300L/S
    3. Working temperature of pouring tank is 70 ~ 85℃
    4. Ultimate vacuum degree of pouring tank (cold state, no load) ≤50Pa
    5. Pouring tank leakage rate ≤50Pa.L/S
    6. The working vacuum of pouring tank is 50 ~ 100Pa
    7. The equipment adopts manual metering and dynamic mixing of materials.
    8. The equipment adopts vacuum casting process.
    9. The mixing tank adopts electric heating, heat conduction oil as heat transfer medium and automatic temperature control. The pouring tank is directly heated by electric heating element. All heating parts are insulated with thermal insulation materials, and the pouring tank is armored with stainless steel plate (SUS430); The mixing tank is armored with thin steel plate and coated on the surface. The surface temperature of the insulation layer is not higher than 20℃ room temperature.
  2. EQUIPMENT POWER, WATER, AIR SOURCE AND BASIC CONDITION

REQUIREMENTS, (USER EQUIPPED WITH: POWER SUPPLY, AIR COMPRESSOR):

Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 4Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 5Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 6Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 7Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 8

  1. Rated power: 80kw, 380V, 50Hz, three-phase five-wire special distribution cabinet, power connected to the electric control cabinet.
  2. Water source: pressure ≥0.2Mpa, maximum consumption 3m3/h, water temperature ≤25℃.
  3. Compressed air: 0.4 ~ 0.6Mpa, maximum consumption of 0.3m3/min
  4. Make foundation, steel frame and outer track of embedded tank according to our design drawings.
  1. TECHNICAL CONDITIONS OF EACH SYSTEM:
    1. A SET OF 400L VACUUM MIXING DEGASSING TANK

Technical specification and application of tank

The effective volume is 400L

Heat conduction oil 10KW

Ultimate vacuum: 50Pa (no load, cold state)

No load leakage rate: 50Pa.L/S

Operating temperature: 60 ~ 80℃

Tank surface temperature Ambient temperature +20℃

Equipped with frequency control device, can adjust the stirring lifting speed according to the viscosity of the material;

Rock wool insulation, stainless steel plate (SUS430, 1.5mm thick) armored, surface coating

This tank is used for mixing epoxy resin and curing agent mixture and vacuum degassing.

The mixing tank is installed on the pouring master side of the vacuum pouring tank to increase production.

TANK BODY ACCESSORIES:

NO. NAME QTY
1 STAINLESS STEEL LINER BODY 1 SET
2 STAINLESS STEEL TAPERED STAMPED HEAD BASE 1 SET
3 REDUCER SEAT 1 SET
4 BEARING, DYNAMIC SEAL, ETC 1 SET
5 STAINLESS STEEL ANCHOR AGITATOR 1 PC
6 BUILT-IN FILM DEGASSING DEVICE 1 SET
7 MANUAL VACUUM SUCTION VALVE DN25 2 SETS
8 ILLUMINATION OBSERVATION DEVICE 1 SET
9 TEMPERATURE CONTROL SENSOR 1 SET
10 CAN LID SEAL RING 1 PIECE
11 PNEUMATIC DISCHARGE VALVE (STAINLESS STEEL DN50) 1 SET
12 STIRRING REDUCER 1 PC
13 VARIABLE FREQUENCY SPEED REGULATING DEVICE 1 PC
14 HEATING MEDIUM LEVEL DISPLAY DEVICE 1 SET
15 ELECTRIC HEATING ELEMENT 2 SETS
16 BIMETAL THERMOMETER 1 SET
17 SPARE FEED PORT (DN100) 1 SET
18 ACCELERATOR CHARGING PORT AND VALVE 1 SET







4.2 A SET OF VACUUM POURING TANK (ATMOSPHERIC PRESSURE) SYSTEM Vacuum tank technical specifications and uses:

Horizontal tank inner wall size: Φ2000mm×2400mm

Ultimate vacuum: 50Pa (no load, cold state)

No load leakage rate: 50Pa.L/S

Operating temperature: 70 ~ 85℃

Tank surface temperature: ambient temperature +20℃

The casting supervisor adopts pneumatic ball valve for feeding, and can adjust the vacuum casting valve actually needed according to the number of products. The spare flange interface of the casting pipe is reserved for future upgrading.

The pouring tank is horizontal, the door of the tank is swung open on the side, and the tank body is of vacuum pouring tank structure. After the door is closed in place, the tank is clamped.

The vacuum casting process can optimize the casting process, increase the permeability of the material, and finally achieve the effect of reducing the release index of the product.

Lock the can card manually after the can door is closed in place.

The tank body is installed on the ground, and light rail and working trolley (reinforced) are provided in the tank.

The outer surface of the tank is heated by electric heating plate.

The height of the track inside the tank is flush with the track of the transfer trolley outside the tank (self-made by the user of the transfer trolley outside the tank), so as to facilitate the access of the trolley;

Rock wool insulation, stainless steel plate (SUS430) armored processing.

The tank body is provided with other interfaces to meet the technological requirements.

TANK ATTACHMENT

NO. NAME QTY
1 ILLUMINATION OBSERVATION DEVICE 6 SETS
2 FLANGE CONNECTION VACUUM POURING PORT ROW (DN16) 12
3 TEMPERATURE SENSOR 2PCS
4 SPECIAL-SHAPED SEAL RING FOR TANK DOOR 1 SET
5 MANUAL ROTATING CAN DOOR OPENING AND CLOSING MECHANISM 1 SET
6 TANK BEARING TROLLEY (6 TONS) 1 SET
7 BIMETAL THERMOMETER 1 SET
8 VACUUM POURING MAIN PIPE (DN50 WITH 12 SETS OF DN16 PIPES) 1 SET



4.3 TWO SETS OF HEATING SYSTEM

4.3.1 Each unit of the equipment is controlled by an independent temperature control system, which is convenient for each unit to adjust the temperature. The mixing tank adopts heat transfer mode of heat conduction oil. The pouring tank is directly heated by Wuxi electric heating plate, automatic temperature control, overtemperature alarm, 63KW power, the highest heating temperature of 130℃. The heating temperature of all the mixing tank heating system can be adjusted between normal temperature and 80℃.

SYSTEM CONFIGURATION:

HEATING SYSTEM FOR 400L FINAL MIXING TANK:

  NO. NAME QUANTITY
1 TUBULAR ELECTRIC HEATING ELEMENT (5KW) 2 SETS
2 DIGITAL DISPLAY TEMPERATURE CONTROLLER 1 SET
3 TEMPERATURE SENSOR 1 SET
4 WIRE AND CABLE 1 SET

HEATING SYSTEM FOR VACUUM POURING TANK:

NO NAME QUANTITY
1 ELECTRIC HEATING PLATE (0.5KW) 108 SETS
2 HIGH TEMPERATURE CONDUCTOR 600 METERS
3 TEMPERATURE CONTROL SWITCH 6
4 DIGITAL TEMPERATURE CONTROLLER 1 SET
5 PRESSURE PLATE 108 SETS
6 FIXED STUDS FOR RESISTANCE WELDING 216 SETS

4.4 TWO SETS OF VACUUM SYSTEM (A TOTAL OF 3 VACUUM PUMPS):

4.4.1. The maximum pumping speed of a rotary sheet Roots unit to the pouring tank vacuum unit is 300L/S. The working vacuum of the system can be controlled between 50-200Pa; Reduce the possibility of material being pumped into the vacuum system due to high vacuum degree; The system is equipped with 2 sets of special filters to prevent impurities in the pumped gas to the maximum extent and capture condensing condensable gas to protect the vacuum pump.

CONFIGURATION ATTACHMENT:

NO. NAME QUANTITY
1 VSV-300 ROTARY VANE VACUUM PUMP 1 SET
2 ZJP-300 ROOTS VACUUM PUMP 1 SET
3 PNEUMATIC VACUUM MAIN VALVE (DN150) 1 SET
4 ELECTROMAGNETIC CHARGING VALVE 1 SET
5 MANUAL CHARGING VALVE 1 SET
6 BELLOWS 1 SET
7 CONDENSING FILTER 1 SET
8 VACUUM FILTER 1 SET
9 DISC VACUUM GAUGE (Z-100) 1 SET
10 SEAMLESS TUBE VACUUM PIPE (DN150) 1 SET

SYSTEM CONFIGURATION ATTACHMENT:

NO. NAME QUANTITY
1 VSV-100 ROTARY VANE VACUUM PUMP 1 SET



  2 PNEUMATIC VACUUM MAIN VALVE (DN50) 2 SETS
3 ELECTROMAGNETIC CHARGING VALVE 2 SETS
4 MANUAL CHARGING VALVE 2 SETS
5 BELLOWS 1 SET
6 CONDENSING FILTER 1 SET
7 VACUUM FILTER 2 SETS
8 DISC VACUUM GAUGE 2 SETS
9 SEAMLESS TUBE VACUUM PIPE 2 SETS

VACUUM UNIT:



CASTING TANK VACUUM UNIT MIXING TANK VACUUM UNIT

4.5. A SET OF AUTOMATIC CLEANING SYSTEM

4.5.1 The system includes: diaphragm pump, solvent tank, flow tank, pipeline, valve, vacuum meter, etc.

4.5.2 The system transmits the solvent to the mixing tank through the special solvent pumping pump;

4.5.3 Complete the automatic cleaning process by pouring pipeline and valve back to the solvent tank through the flow tank, valve and pipeline;

4.5.4 The solvent can is provided with discharge valve to discharge sediment regularly.

4.6. A SET OF COOLING WATER PIPING SYSTEM

The system includes cooling water pipes, valves, pressure gauges and other water points within the scope of the equipment. The user shall connect the water supply and return water points within 5 meters of the equipment site.

NO. NAME QUANTITY
1 GALVANIZED WATER PIPE 1 SET
2 COPPER BALL VALVE SOME PIECES
3 ELECTRIC CONTACT PRESSURE GAUGE 1 SET
4 SWITCH STOP VALVE 2 SETS

4.7. A SET OF PNEUMATIC PIPING SYSTEM

4.7.1. Used to provide power for pneumatic valves and cylinders. The user provides the air source within 5 meters of the equipment site. The supplier shall provide:

NO. NAME QUANTITY
1 TRIPLET 1 SET
2 TWO-POSITION FIVE-WAY VALVE 8 SETS
3 PIPING ACCESSORIES 1 SET


4.8 A SET OF ELECTRONIC CONTROL SYSTEM (TOUCH SCREEN)





Function:

The control system is applicable to the ambient temperature of 0 ~ 40℃, wiring, wiring, bridge layout in accordance with the international implementation.

  • Casting tank temperature, vacuum degree detection and digital display.
  • Touch screen control process, display the working state of each equipment unit.
  • Realize stirring motor control, pneumatic valve, solenoid valve control. ● Realize the interlock and interlock between the pump and valve of the vacuum unit.
  • The realization of air pressure, water pressure insufficient alarm device.

Mixing tank feeding by manual preparation, manual input into the mixing tank. ● It can be controlled by manual knob and touch screen.

4.9 OTHER TECHNICAL REQUIREMENTS

4.9.1. Rust removal, rust prevention and coating treatment on the surface of system components.

  1. The external surface of each component of the heating system (except armored parts and purchased components) shall be warm red.
  2. The outer surface of the electric control cabinet is sky blue
  3. The outer surface of other parts (except armored parts and outsourced parts) and the equipment working platform are all industrial gray.

4.10 A SET OF STEEL FRAME PLATFORM FOR EQUIPMENT INSTALLATION (MATERIALS

PROVIDED BY PARTY A AND MADE BY PARTY B)




The steel frame platform is used to install this set of equipment, and the steel frame is of 2-layer structure. The mixing tank is placed on the two-story steel platform. We provide the drawing and material list of the steel frame and its fabrication.





5. LIST OF ACCESSORIES AND SPARE PARTS

NO. NAME SPECIFICATION QUANTITY
1

THE VACUUM PUMP COMES WITH

ACCESSORIES

VSV-100 1 SET
2 TANK DOOR SEAL RING VSV-300 1 SET
3

SEAL RING FOR VACUUM AND

MATERIAL PIPELINE

ZJP-300 1 SET
4 MIXING TANK LID SEAL RING

Φ2400 (AVAILABLE IN

1 YEAR)

1 PIECE
5 ELECTRIC HEATING ELEMENT VARIOUS GAUGES 1 SET
6 TEMPERATURE RESISTANCE 400L 1 ROOT
7 ILLUMINATION OBSERVATION LAMP   2 STICKS
8 OBSERVATION WINDOW   2 STICKS



Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 8Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 10Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 11Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 12Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 13Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 14

products
PRODUCTS DETAILS
Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer
MOQ: 1 pcs
Price: consult
Standard Packaging: Export standard packaging
Delivery Period: 5 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100pcs/month
Detail Information
Place of Origin
China
Brand Name
JC
Certification
SGS,CE,UL
Model Number
KCY-9000
Name:
Vacuum Pressure Casting Equipment
Process:
Casting
Specification:
Pressure Increasing
Capacity:
100-1000kg/h
Design Pressure:
Customized
Design Temperature:
Customized
Heating Method:
Direct/Indirect
Heating Source:
Steam/Electricity/Gas
Insulation:
Rock Wool/Glass Wool
Material:
Stainless Steel
Operating Pressure:
Customized
Product Name:
Pressure Increasing Drying Plant
Surface Treatment:
Painting/Sand Blasting
Vessel Type:
Vertical/Horizontal
Vessel Volume:
Customized
Dimension:
1000*1000*2000mm
Heating Temperature:
50-200℃
Humidity:
≤85%RH
Noise Level:
≤75dB
Operating Temperature:
0-50℃
Power:
220V/50Hz
Pressure Range:
0.1-0.6MPa
Weight:
500-1000kg
Minimum Order Quantity:
1 pcs
Price:
consult
Packaging Details:
Export standard packaging
Delivery Time:
5 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100pcs/month
Highlight

Candle Tin Vacuum Resin Casting Machine

,

Resin Casting Machine Drying

,

Drying Oven For Power Transformer

Product Description

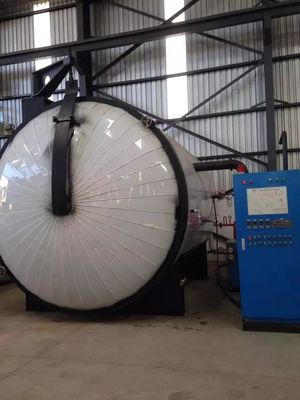

Vacuum drying oven for power transformer with Pressure Increasing Drying plant(Candle Tin)

Product Apperance:

A vacuum drying oven with a Pressure Increasing Drying (PID) plant, using a candle tin, is a specialized equipment setup commonly used for drying power transformers. This method is known as the vacuum and pressure drying process. Here's how it typically works:

Vacuum Drying: The power transformer is placed inside a vacuum drying oven. The oven creates a low-pressure environment by removing air and moisture from the chamber. This process helps in removing moisture from the transformer's insulation and windings.

Pressure Increasing Drying (PID) Plant: The PID plant is an integral part of the setup. It consists of a pressure vessel, often referred to as a candle tin, which is connected to the vacuum drying oven. The candle tin is designed to withstand high pressures.

Pressure Increase: Once the vacuum drying phase is complete, the pressure inside the oven is slowly increased by introducing an inert gas (such as nitrogen) into the candle tin. By increasing the pressure, any remaining moisture trapped within the transformer's insulation is forced out.

Heat Application: During both the vacuum and pressure increase phases, heat is applied to the oven. The temperature is carefully controlled and gradually increased to facilitate the drying process. The temperature range and duration depend on the specific requirements of the transformer being dried.

Moisture Removal: As the pressure increases and the temperature rises, the moisture within the transformer evaporates and is carried away by the inert gas. The moisture-laden gas is then expelled from the oven.

Cooling and Venting: Once the desired drying level is achieved, the oven is cooled down, and the pressure is gradually reduced. This ensures that the transformer and its insulation regain ambient conditions without causing thermal stress.

The vacuum drying oven with a Pressure Increasing Drying plant (Candle Tin) is an effective method for drying power transformers. It helps eliminate moisture, enhance the insulation properties, and ensure optimal performance and longevity of the transformer. It is often used during the manufacturing process or when maintenance work is carried out on transformers.

Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 0Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 1Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 2Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 3

  1. EQUIPMENT COMPOSITION
NO. NAME QUANTITY REMARK
1.1

200L VACUUM FINAL MIXING GAS TANK

SYSTEM

TWO SETS
1.2 VACUUM POURING TANK SYSTEM ONE SET
1.3 HEATING SYSTEM TWO SETS
1.4 VACUUM SYSTEM TWO SETS
1.5 COOLING WATER PIPING SYSTEM ONE SET
1.6 PNEUMATIC AND PIPING SYSTEMS ONE SET
1.7 CONTROL SYSTEM ONE SET TOUCH SCREEN
1.8 STEEL FRAME PLATFORM ONE SET OFFERED BY PART A
  1. TECHNICAL INDICATORS AND PARAMETERS OF EQUIPMENT:
    1. Vacuum pouring pot size Φ2000×L2400
    2. The pumping speed of the main pumping pump of the vacuum system is 300L/S
    3. Working temperature of pouring tank is 70 ~ 85℃
    4. Ultimate vacuum degree of pouring tank (cold state, no load) ≤50Pa
    5. Pouring tank leakage rate ≤50Pa.L/S
    6. The working vacuum of pouring tank is 50 ~ 100Pa
    7. The equipment adopts manual metering and dynamic mixing of materials.
    8. The equipment adopts vacuum casting process.
    9. The mixing tank adopts electric heating, heat conduction oil as heat transfer medium and automatic temperature control. The pouring tank is directly heated by electric heating element. All heating parts are insulated with thermal insulation materials, and the pouring tank is armored with stainless steel plate (SUS430); The mixing tank is armored with thin steel plate and coated on the surface. The surface temperature of the insulation layer is not higher than 20℃ room temperature.
  2. EQUIPMENT POWER, WATER, AIR SOURCE AND BASIC CONDITION

REQUIREMENTS, (USER EQUIPPED WITH: POWER SUPPLY, AIR COMPRESSOR):

Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 4Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 5Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 6Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 7Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 8

  1. Rated power: 80kw, 380V, 50Hz, three-phase five-wire special distribution cabinet, power connected to the electric control cabinet.
  2. Water source: pressure ≥0.2Mpa, maximum consumption 3m3/h, water temperature ≤25℃.
  3. Compressed air: 0.4 ~ 0.6Mpa, maximum consumption of 0.3m3/min
  4. Make foundation, steel frame and outer track of embedded tank according to our design drawings.
  1. TECHNICAL CONDITIONS OF EACH SYSTEM:
    1. A SET OF 400L VACUUM MIXING DEGASSING TANK

Technical specification and application of tank

The effective volume is 400L

Heat conduction oil 10KW

Ultimate vacuum: 50Pa (no load, cold state)

No load leakage rate: 50Pa.L/S

Operating temperature: 60 ~ 80℃

Tank surface temperature Ambient temperature +20℃

Equipped with frequency control device, can adjust the stirring lifting speed according to the viscosity of the material;

Rock wool insulation, stainless steel plate (SUS430, 1.5mm thick) armored, surface coating

This tank is used for mixing epoxy resin and curing agent mixture and vacuum degassing.

The mixing tank is installed on the pouring master side of the vacuum pouring tank to increase production.

TANK BODY ACCESSORIES:

NO. NAME QTY
1 STAINLESS STEEL LINER BODY 1 SET
2 STAINLESS STEEL TAPERED STAMPED HEAD BASE 1 SET
3 REDUCER SEAT 1 SET
4 BEARING, DYNAMIC SEAL, ETC 1 SET
5 STAINLESS STEEL ANCHOR AGITATOR 1 PC
6 BUILT-IN FILM DEGASSING DEVICE 1 SET
7 MANUAL VACUUM SUCTION VALVE DN25 2 SETS
8 ILLUMINATION OBSERVATION DEVICE 1 SET
9 TEMPERATURE CONTROL SENSOR 1 SET
10 CAN LID SEAL RING 1 PIECE
11 PNEUMATIC DISCHARGE VALVE (STAINLESS STEEL DN50) 1 SET
12 STIRRING REDUCER 1 PC
13 VARIABLE FREQUENCY SPEED REGULATING DEVICE 1 PC
14 HEATING MEDIUM LEVEL DISPLAY DEVICE 1 SET
15 ELECTRIC HEATING ELEMENT 2 SETS
16 BIMETAL THERMOMETER 1 SET
17 SPARE FEED PORT (DN100) 1 SET
18 ACCELERATOR CHARGING PORT AND VALVE 1 SET







4.2 A SET OF VACUUM POURING TANK (ATMOSPHERIC PRESSURE) SYSTEM Vacuum tank technical specifications and uses:

Horizontal tank inner wall size: Φ2000mm×2400mm

Ultimate vacuum: 50Pa (no load, cold state)

No load leakage rate: 50Pa.L/S

Operating temperature: 70 ~ 85℃

Tank surface temperature: ambient temperature +20℃

The casting supervisor adopts pneumatic ball valve for feeding, and can adjust the vacuum casting valve actually needed according to the number of products. The spare flange interface of the casting pipe is reserved for future upgrading.

The pouring tank is horizontal, the door of the tank is swung open on the side, and the tank body is of vacuum pouring tank structure. After the door is closed in place, the tank is clamped.

The vacuum casting process can optimize the casting process, increase the permeability of the material, and finally achieve the effect of reducing the release index of the product.

Lock the can card manually after the can door is closed in place.

The tank body is installed on the ground, and light rail and working trolley (reinforced) are provided in the tank.

The outer surface of the tank is heated by electric heating plate.

The height of the track inside the tank is flush with the track of the transfer trolley outside the tank (self-made by the user of the transfer trolley outside the tank), so as to facilitate the access of the trolley;

Rock wool insulation, stainless steel plate (SUS430) armored processing.

The tank body is provided with other interfaces to meet the technological requirements.

TANK ATTACHMENT

NO. NAME QTY
1 ILLUMINATION OBSERVATION DEVICE 6 SETS
2 FLANGE CONNECTION VACUUM POURING PORT ROW (DN16) 12
3 TEMPERATURE SENSOR 2PCS
4 SPECIAL-SHAPED SEAL RING FOR TANK DOOR 1 SET
5 MANUAL ROTATING CAN DOOR OPENING AND CLOSING MECHANISM 1 SET
6 TANK BEARING TROLLEY (6 TONS) 1 SET
7 BIMETAL THERMOMETER 1 SET
8 VACUUM POURING MAIN PIPE (DN50 WITH 12 SETS OF DN16 PIPES) 1 SET



4.3 TWO SETS OF HEATING SYSTEM

4.3.1 Each unit of the equipment is controlled by an independent temperature control system, which is convenient for each unit to adjust the temperature. The mixing tank adopts heat transfer mode of heat conduction oil. The pouring tank is directly heated by Wuxi electric heating plate, automatic temperature control, overtemperature alarm, 63KW power, the highest heating temperature of 130℃. The heating temperature of all the mixing tank heating system can be adjusted between normal temperature and 80℃.

SYSTEM CONFIGURATION:

HEATING SYSTEM FOR 400L FINAL MIXING TANK:

  NO. NAME QUANTITY
1 TUBULAR ELECTRIC HEATING ELEMENT (5KW) 2 SETS
2 DIGITAL DISPLAY TEMPERATURE CONTROLLER 1 SET
3 TEMPERATURE SENSOR 1 SET
4 WIRE AND CABLE 1 SET

HEATING SYSTEM FOR VACUUM POURING TANK:

NO NAME QUANTITY
1 ELECTRIC HEATING PLATE (0.5KW) 108 SETS
2 HIGH TEMPERATURE CONDUCTOR 600 METERS
3 TEMPERATURE CONTROL SWITCH 6
4 DIGITAL TEMPERATURE CONTROLLER 1 SET
5 PRESSURE PLATE 108 SETS
6 FIXED STUDS FOR RESISTANCE WELDING 216 SETS

4.4 TWO SETS OF VACUUM SYSTEM (A TOTAL OF 3 VACUUM PUMPS):

4.4.1. The maximum pumping speed of a rotary sheet Roots unit to the pouring tank vacuum unit is 300L/S. The working vacuum of the system can be controlled between 50-200Pa; Reduce the possibility of material being pumped into the vacuum system due to high vacuum degree; The system is equipped with 2 sets of special filters to prevent impurities in the pumped gas to the maximum extent and capture condensing condensable gas to protect the vacuum pump.

CONFIGURATION ATTACHMENT:

NO. NAME QUANTITY
1 VSV-300 ROTARY VANE VACUUM PUMP 1 SET
2 ZJP-300 ROOTS VACUUM PUMP 1 SET
3 PNEUMATIC VACUUM MAIN VALVE (DN150) 1 SET
4 ELECTROMAGNETIC CHARGING VALVE 1 SET
5 MANUAL CHARGING VALVE 1 SET
6 BELLOWS 1 SET
7 CONDENSING FILTER 1 SET
8 VACUUM FILTER 1 SET
9 DISC VACUUM GAUGE (Z-100) 1 SET
10 SEAMLESS TUBE VACUUM PIPE (DN150) 1 SET

SYSTEM CONFIGURATION ATTACHMENT:

NO. NAME QUANTITY
1 VSV-100 ROTARY VANE VACUUM PUMP 1 SET



  2 PNEUMATIC VACUUM MAIN VALVE (DN50) 2 SETS
3 ELECTROMAGNETIC CHARGING VALVE 2 SETS
4 MANUAL CHARGING VALVE 2 SETS
5 BELLOWS 1 SET
6 CONDENSING FILTER 1 SET
7 VACUUM FILTER 2 SETS
8 DISC VACUUM GAUGE 2 SETS
9 SEAMLESS TUBE VACUUM PIPE 2 SETS

VACUUM UNIT:



CASTING TANK VACUUM UNIT MIXING TANK VACUUM UNIT

4.5. A SET OF AUTOMATIC CLEANING SYSTEM

4.5.1 The system includes: diaphragm pump, solvent tank, flow tank, pipeline, valve, vacuum meter, etc.

4.5.2 The system transmits the solvent to the mixing tank through the special solvent pumping pump;

4.5.3 Complete the automatic cleaning process by pouring pipeline and valve back to the solvent tank through the flow tank, valve and pipeline;

4.5.4 The solvent can is provided with discharge valve to discharge sediment regularly.

4.6. A SET OF COOLING WATER PIPING SYSTEM

The system includes cooling water pipes, valves, pressure gauges and other water points within the scope of the equipment. The user shall connect the water supply and return water points within 5 meters of the equipment site.

NO. NAME QUANTITY
1 GALVANIZED WATER PIPE 1 SET
2 COPPER BALL VALVE SOME PIECES
3 ELECTRIC CONTACT PRESSURE GAUGE 1 SET
4 SWITCH STOP VALVE 2 SETS

4.7. A SET OF PNEUMATIC PIPING SYSTEM

4.7.1. Used to provide power for pneumatic valves and cylinders. The user provides the air source within 5 meters of the equipment site. The supplier shall provide:

NO. NAME QUANTITY
1 TRIPLET 1 SET
2 TWO-POSITION FIVE-WAY VALVE 8 SETS
3 PIPING ACCESSORIES 1 SET


4.8 A SET OF ELECTRONIC CONTROL SYSTEM (TOUCH SCREEN)





Function:

The control system is applicable to the ambient temperature of 0 ~ 40℃, wiring, wiring, bridge layout in accordance with the international implementation.

  • Casting tank temperature, vacuum degree detection and digital display.
  • Touch screen control process, display the working state of each equipment unit.
  • Realize stirring motor control, pneumatic valve, solenoid valve control. ● Realize the interlock and interlock between the pump and valve of the vacuum unit.
  • The realization of air pressure, water pressure insufficient alarm device.

Mixing tank feeding by manual preparation, manual input into the mixing tank. ● It can be controlled by manual knob and touch screen.

4.9 OTHER TECHNICAL REQUIREMENTS

4.9.1. Rust removal, rust prevention and coating treatment on the surface of system components.

  1. The external surface of each component of the heating system (except armored parts and purchased components) shall be warm red.
  2. The outer surface of the electric control cabinet is sky blue
  3. The outer surface of other parts (except armored parts and outsourced parts) and the equipment working platform are all industrial gray.

4.10 A SET OF STEEL FRAME PLATFORM FOR EQUIPMENT INSTALLATION (MATERIALS

PROVIDED BY PARTY A AND MADE BY PARTY B)




The steel frame platform is used to install this set of equipment, and the steel frame is of 2-layer structure. The mixing tank is placed on the two-story steel platform. We provide the drawing and material list of the steel frame and its fabrication.





5. LIST OF ACCESSORIES AND SPARE PARTS

NO. NAME SPECIFICATION QUANTITY
1

THE VACUUM PUMP COMES WITH

ACCESSORIES

VSV-100 1 SET
2 TANK DOOR SEAL RING VSV-300 1 SET
3

SEAL RING FOR VACUUM AND

MATERIAL PIPELINE

ZJP-300 1 SET
4 MIXING TANK LID SEAL RING

Φ2400 (AVAILABLE IN

1 YEAR)

1 PIECE
5 ELECTRIC HEATING ELEMENT VARIOUS GAUGES 1 SET
6 TEMPERATURE RESISTANCE 400L 1 ROOT
7 ILLUMINATION OBSERVATION LAMP   2 STICKS
8 OBSERVATION WINDOW   2 STICKS



Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 8Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 10Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 11Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 12Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 13Candle Tin Vacuum Resin Casting Machine Drying Oven For Power Transformer 14

Sitemap |  Privacy Policy | China Good Quality Transformer Winding Machine Supplier. Copyright © 2023-2025 Wuxi Jiachen Power Electronics Equipment Co., Ltd. . All Rights Reserved.
