Vacuum Heat Treatment Furnace Equipment For Electric Insulation

MOQ: 1 pcs
Price: consult
Standard Packaging: Export standard packaging
Delivery Period: 5 days
Payment Method: L/C, T/T, Western Union, MoneyGram
Supply Capacity: 100pcs/month
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JC
Certification
SGS，CE,UL
Model Number
8219
Document
Product Brochure PDF
Service Area Mm:
500X300X300
Amount Of Charge KG:
100
The Highest Temperature:
2000
Temperature Uniformity:
±5
Limited Vacuum Pa:
0.4/0.0067
Rate Of Pressure Rise(pa/L):
0.67
Working Pressure(Mpa):
0.6-1.0
Minimum Order Quantity:
1 pcs
Price:
consult
Packaging Details:
Export standard packaging
Delivery Time:
5 days
Payment Terms:
L/C, T/T, Western Union, MoneyGram
Supply Ability:
100pcs/month
Highlight:

Vacuum Heat Treatment Furnace

,

heat treatment vacuum furnace

,

electric furnace transformer

Product Description

Vacuum Heat Treatment Furnace of Vacuum Heat Treatment Equipment for Electric Insulation

Basic Info.

Model NO.
KKK
Material Status
Solution, Strap
Drying Medium
Inactive Gas, Superheated Steam, Effluent Gas, Air
Operation Pressure
Vacuum
Operational Method
Continuous
Pouring Pot Size mm
2200X3000
Application Area
for Electrical Insulators
Mixing Bowl
300L
Standard
KCB Series Standard
Product Name
Vacuum Casting Equipment
Turn-Key Projects
One-Step Service
Transport Package
Wooden
Specification
900*900*900
Trademark
JC
Origin
China
HS Code
84292990
Production Capacity
60000PCS/Year

Product Description

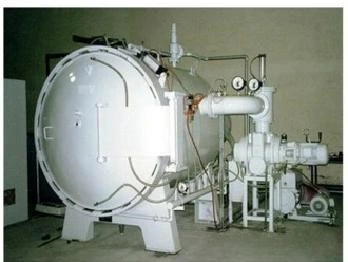

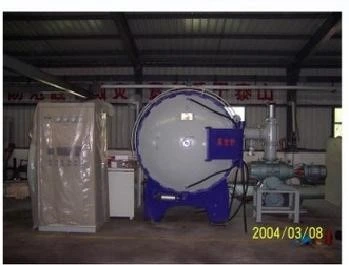

Vacuum heat treatment furnace
NO. Model Service area mm Amount of charge KG The highest temperature Temperature uniformity Limited vacuum Pa Rate of pressure rise(pa/L) Working pressure(Mpa)
1 KL-100 500X300X300 100 2000 ±5 0.4/0.0067 0.67 0.6-1.0
2 KL-200 600X400X400 200 2000 ±5 0.4/0.0067 0.67 0.6-1.0
3 KL-300 750×500×500 300 2000 ±5 0.4/0.0067 0.67 0.6-1.0
4 KL-500 900X600X600 500 2000 ±5 0.4/0.0067 0.67 0.6-1.0


Overview

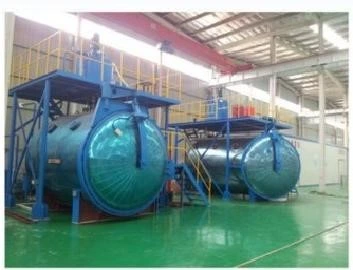

KM Series of coal, oil and gas phase drying equipment is the use of kerosene heating evaporation under vacuum condition, become hot keros- ene evaporates, met lower-temperature condensation of the workpiece in the vacuum tank, releasing latent heat of condensation (306.6KJ/KG)
And heating of the body. Condensation paraffin is collected through fuel delivery system back into the evaporator, heat evaporation again, and so many times, operating temperatures continue to rise, water constantly ev- aporates into water vapor, is drained by vacuum system, and ultimately achieve the goal of completely dry.
KM Series of coal, oil and gas-phase drying equipment to fuel the
steam for heat transfer fluids, convective heat and condensation heat tra- nsfer in vacuum and low temperature condensed the more intense the
heat more, therefore the body temperature uniformity.

Main technical characteristics
1,KL Vacuum heat treatment furnace series is widely used in electric power, mold manufacturing, auto industry, machinery, electronics and high-tech materials industry.
2,Type of heat treatment equipment: vacuum high-pressure gas que-
nching furnace (6-20bar),Vacuum, vacuum sintering furnace, vacuum oil quenching furnace annealing(tempering)furnace, vacuum core special furnace and so on. Also according to the customer request non-standard vacuum furnace.
3,Equipment composition: heating systems, vacuum systems, vacuum furnace, cooling system, cooling system, pneumatic system, pneumatic system, electric control system (optional touch screen).
4 ,KL Main series vacuum furnaces for the double-layer water cooling
structure, shell made of carbon steel or stainless steel, graphite and
metal of boiler furnace of boiler two: Metal furnace heating element moly- bdenum / Tungsten / Nickel material, heat shield with metal molybdenum / Tungsten / Nickel / The stainless steel material. Temperature control using
Japan Island electric temperature control instrument, the other is controlled by Japan's Mitsubishi series PLC main electrical appliances imported.


My Company:
is a high-tech private enterprise, it has a experienced term, which more than ten years engaged in research and development, design, manufacture and installation of vacuum equipment. Besides, it is not only committed to build high quality brand about vacuum equipment, but it also has prodcuts, which are widely used in impregnating, epoxy resin pouring, drying, and note oil processing in some industries(like metal heat treatment, transformer, and transformer device, reactor device, reg- ulator device, high pressure electrical, motor, capacitor, switch and other similar industries).
Relying on strong technical advantages and scale advantages, and it also dedicated itslef to develop Vacuum application technology and relative vacuum equipment Main products are differnent kinds of vacuum casting equipments, vacuum drying equipment, vacuum impregnation equipment, vacuum oiling device equipment, and vacuum heat treatment equipment.
The most important of this company is product qualitu, and it strictly follows international quality certification system, implmentcation od quality poliy about'creating a Kerry brands, buliding first-class equipment, following innovation for development, and being in accordance with customer service.It also provides the best solution, higher quality products and more valuable and efficient after-sales service for
new and old customers.Vacuum Heat Treatment Furnace Equipment For Electric Insulation 0Vacuum Heat Treatment Furnace Equipment For Electric Insulation 1Vacuum Heat Treatment Furnace Equipment For Electric Insulation 2






Vacuum Heat Treatment Furnace Equipment For Electric Insulation 3Vacuum Heat Treatment Furnace Equipment For Electric Insulation 4Vacuum Heat Treatment Furnace Equipment For Electric Insulation 5Vacuum Heat Treatment Furnace Equipment For Electric Insulation 6Vacuum Heat Treatment Furnace Equipment For Electric Insulation 7Vacuum Heat Treatment Furnace Equipment For Electric Insulation 8Vacuum Heat Treatment Furnace Equipment For Electric Insulation 9Vacuum Heat Treatment Furnace Equipment For Electric Insulation 10Vacuum Heat Treatment Furnace Equipment For Electric Insulation 11
