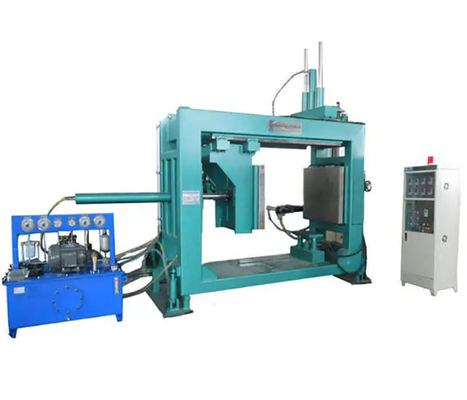

APG Vacuum Mixing Injection Device

Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
JC
Certification
SGS，CE,UL
Model Number
YU9088
Document
Product Brochure PDF
Clamp Force:
22t
Transport Package:
Wooden
Production Capacity:
60000PCS/Year
Clamp Plate Size:
1000X1000MM
Min Max Clamp Plate Strok:
250X1650mm
Upper &lower Core Puller Stroke:
900X400mm
Highlight:

apg Vacuum Mixing Injection Device

,

Epoxy Resin Vacuum Mixing Injection Device

,

Epoxy Resin Clamping Machine For Medium Voltage

Product Description

Double-Station APG Clamping Machine with APG Moulds for Electrical Insulation

· Application-Standard APG clamping machine:

This series belongs to Standared APG clamping machine, the min clamp plate size is 600X800mm, and the Max clamp plate size is: 1200X1000mm, can meet production requirement from 11-36KV, such as current transformer, voltage transformer, insulator, bushing, spout, SFG gas-insulated indoor switch disconnector. Etc.

The upper and lower core distance can be customized, foundation pit is necessary if lower core travel distance above 500mm.

· Main Machine Technical Parameters:

APG Vacuum Mixing Injection Device 0

Product Description

APG Machine = Automatic pressure gel equipment
APG machine with Epoxy Resin for Electric Insulation of 38KV Outdoor Transformer CT and PT.

Ithasbeen nineteen ye arsold and hasbeen developing into DMC after continuous development. S hydraulic press, epoxy resin pressure gel forming machine, full automatic Epoxy Static system and metal extrusion hydraulic press and other equipment, and can design and manufacture various kinds of special equipment according to the needs of high-voltage electrical appliances users.



Servo HAPG Clamping Machine
This machine is full automatic, Servo and Pic touch screen control Machine, the clamp plate size n customized, greatly improved efficiency and product quality Advantages

  1. Servo motor control
  2. PLC touch screen control
  3. Can save more than 100product datas
  4. Fully automatic design

Auto start machine heating clamp plate Auto setting hydraulic pressure Auto setting heating temperature Auto setting valve flow
APG Vacuum Mixing Injection Device 1



APG FACTORY

APG Vacuum Mixing Injection Device 2APG Vacuum Mixing Injection Device 3



APG MACHINE SAFETY SHIPPING

APG Vacuum Mixing Injection Device 4

Products made by APG Machine:

APG Vacuum Mixing Injection Device 5







Tags:

Epoxy Resin Mixing Plant,

Vacuum Mixing and Injection Device,

APG Machine transformers
